项目Item |型号Medol
|
KXT-1
|
KXT-2
|
KXT-3
|
A、如介质酸碱物质
B、工作温度有特殊要求
C、也可来函来图定制
D、订货时需说明
A. If media is oil, acid or alkali.
B. If special requirements for working temperature
C. If OEM orders with drawings or samples
D. Please Inform us about above when ordering
|
|
工作压力MpaWoring pressure
|
1.0(10)
|
1.6(16)
|
2.5(25)
|
|
|
爆破压力Mpa Burst Pressure
|
2.0(20)
|
3.0(30)
|
4.5(45)
|
|
|
真空度 Kpa Vacuum
|
53.3(400)
|
86.7(650)
|
100(750)
|
|
|
适用温度℃Applicable Temperature
|
-20℃~+115℃（特殊可达-30℃~+250℃）-20℃~+115℃(-30℃~+250℃ under special conditions)
|
|||
|
适用介质Applicable Medium
|
酸、碱等, acid, alkali, etc.
|
|||
|
注：主要零件材料同KXT型 Note: the materials of main parts are the same with those of KXT type
|
||||
|
公称通径DN
Nominal Diameter （mm） |
长度
LengthLmm |
轴向位移
Axial displacement mm |
横向位移
Haorizontal isplacement mm |
偏转角度
Angular deflection(a1+a2)° |
||
|
mm
|
英寸inch |
伸长Extension
|
压缩Compression
|
|||
|
32
|
1.25
|
95
|
6
|
9
|
9
|
15
|
|
40
|
1.5
|
95
|
6
|
10
|
9
|
15
|
|
50
|
2
|
105
|
7
|
10
|
10
|
15
|
|
65
|
2.5
|
115
|
7
|
13
|
11
|
15
|
|
80
|
3
|
135
|
8
|
15
|
12
|
15
|
|
100
|
4
|
150
|
10
|
19
|
13
|
15
|
|
125
|
5
|
165
|
12
|
19
|
13
|
15
|
|
150
|
6
|
180
|
12
|
20
|
14
|
15
|
|
200
|
8
|
210
|
16
|
25
|
22
|
15
|
|
250
|
10
|
230
|
16
|
25
|
22
|
15
|
|
300
|
12
|
245
|
16
|
25
|
22
|
15
|
|
350
|
14
|
255
|
16
|
25
|
22
|
15
|
|
400
|
16
|
255
|
16
|
25
|
22
|
15
|
|
450
|
18
|
255
|
16
|
25
|
22
|
15
|
|
500
|
20
|
255
|
16
|
25
|
22
|
15
|
|
600
|
24
|
260
|
16
|
25
|
22
|
15
|
|
700
|
28
|
260
|
16
|
25
|
22
|
15
|
|
800
|
32
|
260
|
16
|
25
|
22
|
15
|
|
900
|
36
|
260
|
16
|
25
|
22
|
15
|
|
1000
|
40
|
260
|
18
|
26
|
24
|
15
|
|
1200
|
48
|
260
|
18
|
26
|
24
|
15
|
|
1400
|
56
|
350
|
20
|
28
|
26
|
15
|
|
1600
|
64
|
350
|
25
|
35
|
30
|
10
|
|
1800
|
72
|
350
|
25
|
35
|
30
|
10
|
|
2000
|
80
|
350
|
25
|
35
|
30
|
10
|
|
2200
|
88
|
400
|
25
|
35
|
30
|
10
|
|
2400
|
96
|
400
|
25
|
35
|
30
|
10
|
|
2600
|
104
|
400
|
25
|
35
|
30
|
10
|
|
2800
|
112
|
400
|
25
|
35
|
30
|
10
|
|
3000
|
120
|
400
|
25
|
35
|
30
|
10
|
|

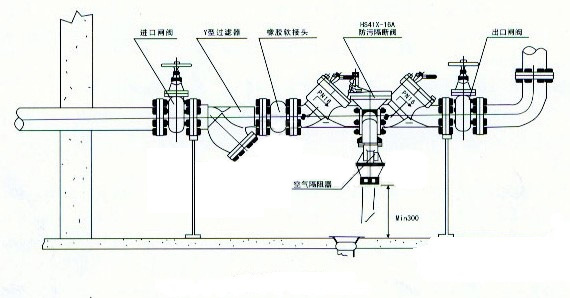

注：1、特殊要求可按用户图纸制作，法兰标准采用GB/T9115.1-2000，可选配（GB、JB、HG、CB、ANSI、DIN、BSEN、NF、EN、JIS、 ISO等）法兰标准生产。2、悬空给水使用DN200以上产品，管道必须有固定支撑或固定托架，否则产品应安装防拉脱装置。 3、用户使用橡胶接头，对应法兰应是阀门法兰或符合GB/T9115.1-2000法兰。 Notes: 1. For OEM orders with special requirement, rubber joints can be made according to customers' drawings. Generally, flange standard is GB/T9115.1-2000, other GB, JB, HG, CB, ANSI, DIN, BSEN, NF, EN, JIS, ISO flanges are also available upon request.2.When rubber joints size above DN200 are used for overhead water supply system, the pipes must be equipped with fixed supports or fixed brackets, otherwise control units shall be installed on rubber joints. 3.Matching flanges of rubber joints shall be valve flanges or GB/T9115.1(RF) flanges. |
||||||
